转速表、转速传感器、频闪仪、激光测振仪、激光测距仪用反光贴纸
防水反光贴纸用于频闪仪、转速表、光电转速传感器、激光测距、动平衡校正及激光振动检测,适用于转子、马达、主轴、风车、扇叶等做动平衡校正时的转速测量。
luyor反光贴纸的特点:
高粘性:高粘性背胶在高转速旋转不会脱落。
高反射:反光面采用粗颗粒玻璃微珠,能够远距离反射激光。
防水:玻璃微珠表面遇水不变质。
防污:表面耐擦拭,不怕污染。
超薄:贴纸超薄处理,不影响动平衡测试数据。
主要用途:
动平衡测试
激光转速测量
光电转速测量
测距仪信号发射
激光测振仪信号发射
直升机旋翼动平衡测试

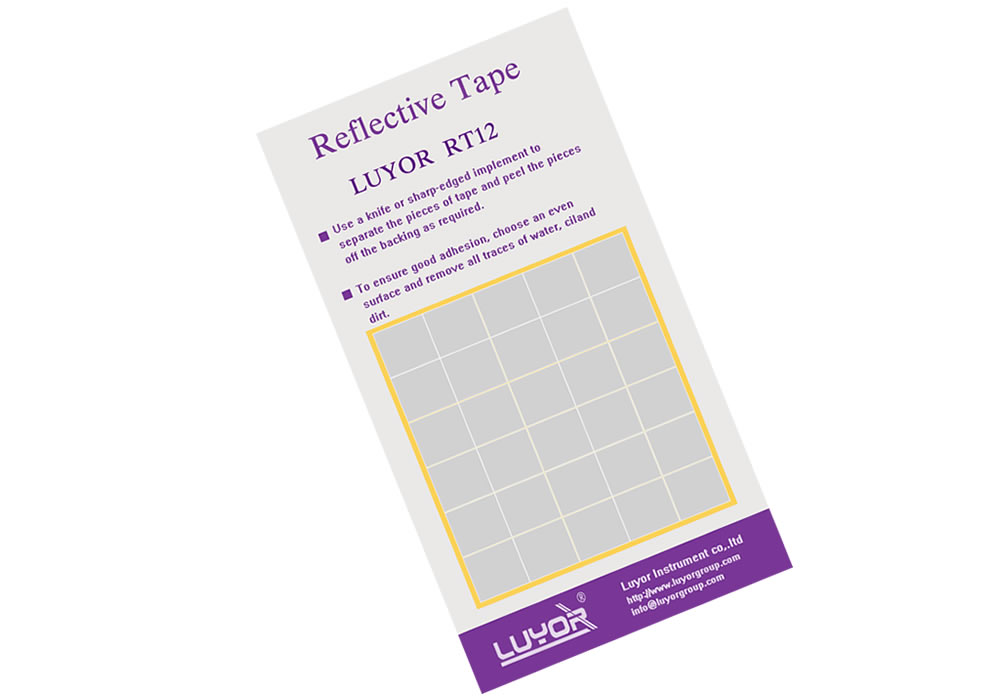

LUYOR RT12反光贴纸:
每包10张,每张30枚,每枚尺寸12mm x 12mm

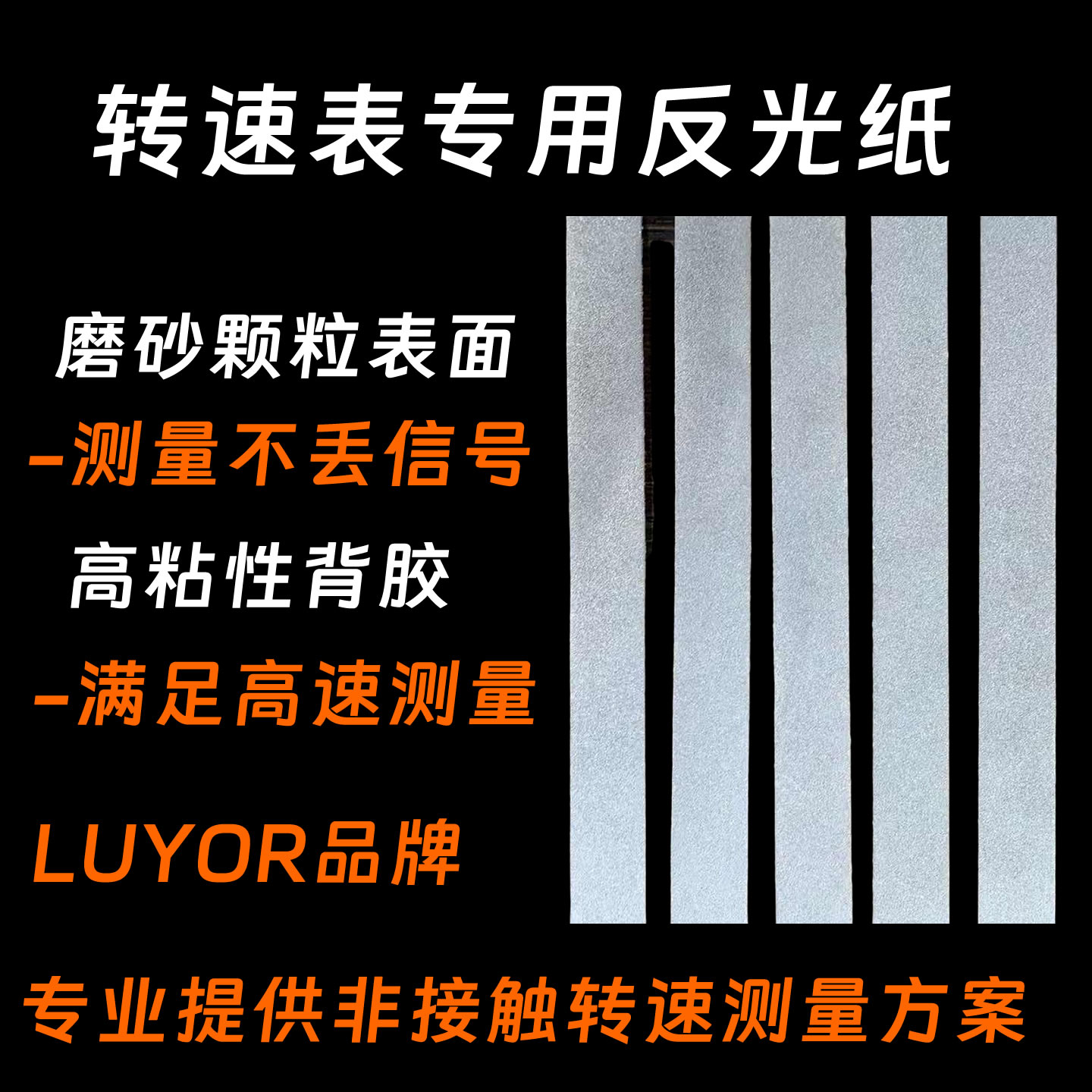

常规反光贴纸规格表:
| 宽度 | 常规尺寸 | 包装 |
|---|---|---|
| 10mm | 10mm x 200mm | 每包10条 |
| 10mm x 2000mm | 每包2卷 | |
| 10mm x 5000mm | 每包1卷 | |
| 15mm | 15mm x 200mm | 每包10条 |
| 15mm x 2000mm | 每包2卷 | |
| 15mm x 5000mm | 每包1卷 | |
| 20mm | 20mm x 200mm | 每包10条 |
| 20mm x 2000mm | 每包2卷 | |
| 20mm x 5000mm | 每包1卷 | |
| 80mm x 80mm | 每包10张 | |
| 80mm | 80mm x 100mm | 每包10张 |
如果以上尺寸没有合适的,可以定制长度(1-100米),宽度仅限10mm、15mm、20mm、80mm四种规格)

包装:有10mm,15mm,20mm,80mm宽度可选,标准长度为2米,其他尺寸可定制。
使用:可以将其修剪成小块并粘贴在被测物体的表面,然后将测量仪器对准反光贴纸,按下仪器的测量按钮进行测量
特点:luyor反光贴纸采用高反射材料,可改善对旋转或移动物体的检测,检测角度和距离范围更广
应用:您可以将其与任何激光或光电转速表、转速传感器一起使用,将转速表反光带切割成您需要的任何尺寸,从而简化您的工作流程并节省您的时间和精力
其他:luyor反光贴纸具有很强的反射率,同时非常强的附着力不易脱落,柔韧、防水、耐阳光照射,为您的工作提供很大的帮助。
PACKAGE: 10mm,15mm,20mm,80mm, there are plenty of them for your daily applications and replacements
USING: You can trim it into small pieces and paste it on the surface of the object to be measured, then point the measuring instrument at the reflective sticker and press the measuring button of the instrument to measure
FEATURE: Laser tachometer accessory uses a highly reflective material that improves detection of rotating or moving objects, with a wider range of detection angles and distances
APPLICATION: You can use it with any laser or photoelectric tachometer to cut the tachometer reflective tape to any size you need, thus simplifying your workflow and saving you time and energy
OTHER: The tachometer tape strip has strong reflectivity, at the same time very strong adhesion is not easy to fall off, flexible, waterproof, sunlight resistance, for your work to provide great help
